Vitralum Storefront Doors
Easily customized for any door hardware requirements, Vitralum Standard Storefront entrances are suited for a variety of exterior and interior applications. Combine with our 451T storefront to easily create sidelite and transom configurations that adapt to meet your project requirements.
Vitralum Standard entrances are standard 1.75” depth, available with narrow (2.125”), medium (3.5”) or wide (5”) stile sizes, including a variety of intermediate and bottom rail options. Glass stops are compatible with 1/4”, 1/2” and 1” glass. Vitralum offers standard Class I anodized finishes in clear and black-bronze (extra dark bronze) and project specific custom paint, powder coat and anodizing are available per request.
190 NARROW STILE
350 MEDIUM STILE
500 WIDE STILE

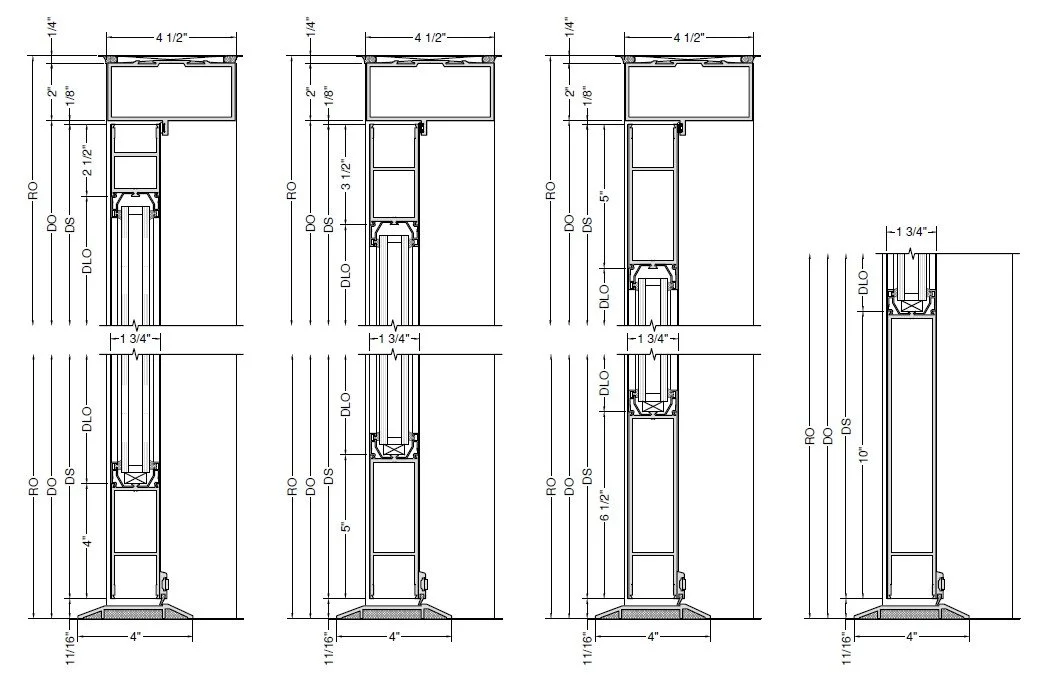

ELEVATION SECTIONS
OPTIONAL 10” RAIL

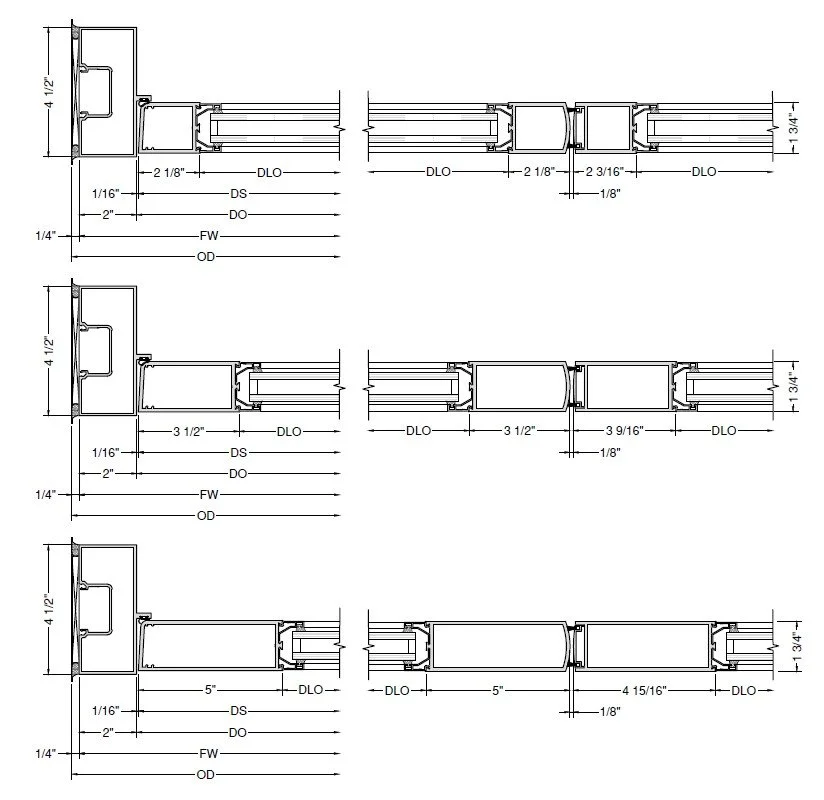

PLAN SECTIONS
190 NARROW STILE
For light to moderate traffic applications
Vertical stiles measures 2-1/8”, top rail 2-1/2” and bottom rail 4”
Suited for retail stores, office and apartment buildings
350 MEDIUM STILE
For moderate to high-traffic applications
Vertical stiles measures 3-1/2”, top rail 3-1/2” and bottom rail 5”
Suited for office buildings and institutions
500 WIDE STILE
For high-traffic applications where extra-durability is required
Vertical stiles measures 5”, top rail 5” and bottom rail 6-1/2” (or 10”)
Suited for office buildings and institutions
FEATURES
For door openings up to 10” H x 4’ W
Heavy duty construction: full penetration welds plus mechanical fasteners at each structral joint
Modern style square glass stops for 1/4” up to 1” glass
Beveled and rabbeted stiles available
Custom applications per request
